The OLD STREET V1.1 inherits the proven performance geometry from its previous model and receives a new paint scheme and several upgrades to enhance the single speed spirit. First of all, the inner brake cable routing gets upgraded. We’ve replaced traditional inner brass tube with modern interchangeable cap system. It not only reduces weight but also provide better rain protection when rear brake is not installed. Second, the mud and tire clearance on both frame and fork are increased, so it can accommodate tires up to 35c for better handling during cyclocross season. Third, we increase rack mounts on the upper center of our oval segment fork, so various front rack models can go with OLD STREET easier. The old street represents our vision of the ideal multi-purposed track frame for modern riders..
- Frame: Double Butted Heat Treated MKT CroMoly
- Fork: 1 1/8" Ovalized Segment CroMoly Fork
- Head Tube: 1 1/8" External Cup (EC34/28,6 – EC 34/30)
- Bottom Bracket: BSA 68 mm
- Seat Tube Diameter: 27,2 mm
- Seat Clamp Size: 29,8 mm
- max. chainring: 50t
- Water Bottle Eyelets: One Set on Seat Tube
- Tyre Clearance: up to 700x35c without fender
- Internal toptube cable routing for brake housing (with covers)
- removable brake studs for V-Brake or Cantilever brakes

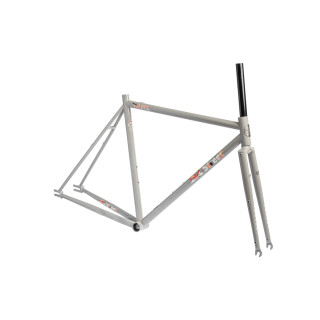

Pictures of the complete bikes are just for showing purpose. Included in delievery is frame + fork + canti brake studs + internal brake guide covers.
|
52 cm |
54 cm |
|
|
| Sitzrohrlänge (Mitte - Oberkante) / Seat Tube Length (C-T) |
520 |
540 |
560 |
580 |
| Sitzrohrwinkel / Seat Angle (°) |
75,5° |
75° |
74,5° |
74° |
| Steurohrlänge / Headtube Length |
95 |
105 |
125 |
140 |
| Steurohrwinkel / Head Angle (°) |
71,5° |
73,5° |
74° |
74,5° |
| Oberrohrlänge / Top Tube Length |
505 |
530 |
550 |
580 |
| BB Drop |
55 |
55 |
55 |
55 |
| Kettenstrebenlänge / Chain Stay Length |
390 |
390 |
390 |
390 |
| Fork Rake |
38 |
38 |
38 |
38 |
| Radstand / Wheelbase |
945 |
959 |
970 |
993 |
| Reach |
373 |
388 |
398 |
413 |
| Stack |
507 |
523 |
539 |
553 |
Alle Angaben in mm sofern nicht anders angegeben / All measurements in mm unless otherwise stated
Irrtümer vorbhalten / Errors excepted
