Road Plus bike that can handle asphalt and gravel.
Midnight Special excels on pothole-strewn, deteriorating asphalt and the occasional long stretch of gravel.The 4130 CroMo frame comes with a modern flat mount disc brake mount, 12 mm thru axle at the front and a stiff 44 mm head tube. The tire clearance allows for an impressive 650b x 60 mm or 700c x 42 mm. It has threads for luggage racks, mudguards and three bottle cages. So you can fit everything you need in and still arrive at the finish line with a healthy urine color at the end of a long, daring ride.

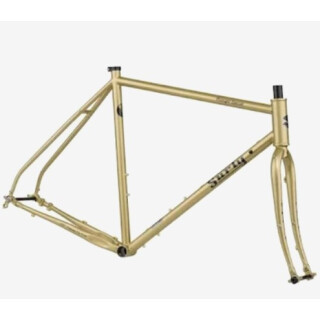

- Frame: 4130 Chromoly, Natch tubes, double butted main triangle, TIG welded, ED coated
- Fork: 4130 Chromoly, Natch tubes, TIG welded, brazed eyelets, ED coated
- Vertical rear hub spacing:
- 12 x 142 mm (Surly axle included)
- 10 x 135 mm with Surly 10/12 adapter discs (not included)
- Front hub spacing: 12 x 100 mm (Surly axle included)
- Brake mount: Flatmount disc brake (max. 160 mm rotor) - 25 mm thick mount / 32 mm bolt length
- Mounting options: mudguards + luggage rack front + rear / 3x bottle holder eyelets / base for frame shift lever
- Seat post diameter: Ø27.2 mm
- Seat clamp dimensions; Ø30 mm
- Head tube size: Ø44 mm
- Steerer tube: Ø28.6 mm (1-1/8")
- Upper standard headset (S.H.I.S.): ZS44/28.6
- Lower standard headset (S.H.I.S.): EC44/30
- Bottom bracket thread: 68mm BSA
- Max. Chainring (CL)[3]:
- 1x (road): 44 teeth
- 2x (road): 34/50 teeth
- 3x (road): 30/39/50 teeth
- Bottom bracket: 68 mm thread (1 .37" x 24 TPI)
- Tire clearance frame [1]/[2]:
- 27.5 x 2.35" (without mudguards)
- 700c x 42 mm (without mudguards)
- 650b x 50 (with mudguards)
- 700c x 38 mm (with mudguards)
- Fork tire clearance [1]:
- 27.5 x 2.35" (without mudguards)
- 700c x 42 mm (without mudguards)
- 650b x 50 (with mudguards)
- 700c x 38 mm (with mudguards)
- Rigid fork specifications:
- 400 x 50 mm (40 - 54 cm)
- 400 x 40 mm (56 - 64 cm)
- Color: Gold
| |
40 cm
|
|
50 cm |
54 cm |
56 cm |
|
|
64 cm |
| |
|
|
| Sitzrohrlänge / Seat Tube Length |
400 |
460 |
500 |
540 |
560 |
580 |
600 |
640 |
| Oberrohrlänge / Top Tube Length (effective) |
500 |
520 |
540 |
555 |
570 |
585 |
605 |
625 |
| Sitzrohrwinkel (°) / Seat Angle |
75,5° |
74° |
73,5° |
73,5° |
73° |
73° |
72,5° |
72,5° |
| Steuerohrwinkel / Head Angle (°) |
71° |
71,5° |
72° |
72,5° |
73° |
73° |
73,5° |
74° |
| Steuerohrlänge / Headtube Length |
95 |
100 |
110 |
125 |
140 |
160 |
180 |
200 |
| BB Drop |
70 |
70 |
65 |
65 |
65 |
65 |
65 |
65 |
| Kettenstrebenlänge / Chain Stay Length |
425 |
425 |
425 |
425 |
425 |
425 |
425 |
425 |
| Gabelvorbiegung / Fork Offset |
50 |
50 |
50 |
50 |
40 |
40 |
40 |
40 |
| Radstand / Wheelbase |
993 |
994 |
1007 |
1018 |
1012 |
1027 |
1036 |
1050 |
| Überstandshöhe / Standover |
720 |
751 |
778 |
806 |
827 |
846 |
866 |
895 |
| Reach |
363 |
366 |
379 |
389 |
393 |
402 |
409 |
423 |
| Stack |
531 |
538 |
544 |
560 |
580 |
599 |
620 |
641 |
| Kurbellänge / Crank Arm Length |
165 |
170 |
170 |
175 |
175 |
175 |
175 |
175 |
| Lenkerbreite / Handlebar Width |
400 |
400 |
400 |
420 |
440 |
440 |
460 |
460 |
| Vorbaulänge / Stem Length |
70 |
80 |
80 |
100 |
100 |
120 |
120 |
120 |
Alle Angaben in mm sofern nicht anders angegeben / All measurements in mm unless otherwise stated
Irrtümer vorbehalten / Errors excepted
