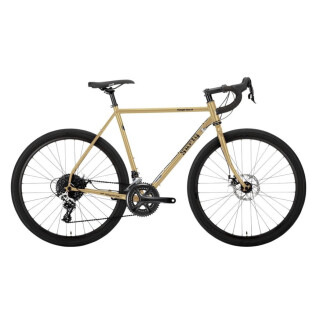

Surly - Midnight Special All-Road Complete Bike - Gold

Surly - Midnight Special All-Road Complete Bike - Gold

SKU: 9104
Category: Cyclocross, Allroad, Gravel & MTB
Manufacturers: Surly

Size

2.498,90 €

incl. 19% VAT , plus (Komplettradversand)

Available immediately

This item has variations. Please select the requested variation.

Road Plus bike that handles tarmac and gravel.

Midnight Special shines on potholed, deteriorating tarmac and the occasional long stretch of gravel. Its 700c tires swallow road noise and absorb all the bumps in the road like the champion it was designed for.

Higher volume tires allow for better fine-tuning of tire pressure on different surfaces and create a wider contact patch for more traction
Modern road standards such as flat mount disc brakes, 12mm thru axles front and rear and a 44mm head tube
Clearance for 650b x 60mm or 700c x 42mm tires without fenders (650b x 50mm or 700c x 38mm with fenders
Frame Construction: 4130 Chromoly, Natch tubing, double butted main triangle, TIG welded, ED coated
Fork Construction: 4130 Chromoly, Natch tubing, TIG welded, brazed lugs, ED coated
Tires: Teravail Rampart 700 x 38 Light and smooth

Vertical Rear Hub Spacing:
- 12 x 142mm (Surly axle included)
- 10 x 135mm with Surly 10/12 adapter discs (not included)
Front hub spacing: 12 x 100 mm (Surly axle included)
Brake mount: Flatmount disc brake (max. 160 mm rotor) - 25 mm thick mount / 32 mm bolt length
Mounting options: mudguards + luggage rack front + rear / 3x bottle holder eyelets / base for frame shift lever
Seat post diameter: Ø27.2 mm
Seat clamp dimensions; Ø30 mm
Head tube size: Ø44 mm
Steerer tube: Ø28.6 mm (1-1/8")
Upper standard headset (S.H.I.S.): ZS44/28.6
Lower standard headset (S.H.I.S.): EC44/30
Bottom bracket thread: 68mm BSA
Max. Chainring (CL)[3]:
- 1x (road): 44 teeth
- 2x (road): 34/50 teeth
- 3x (road): 30/39/50 teeth
Bottom bracket: 68 mm thread (1 .37" x 24 TPI)
Tire clearance frame [1]/[2]:
- 27.5 x 2.35" (without mudguards)
- 700c x 42 mm (without mudguards)
- 650b x 50 (with mudguards)
- 700c x 38 mm (with mudguards)
Fork tire clearance [1]:
- 27.5 x 2.35" (without mudguards)
- 700c x 42 mm (without mudguards)
- 650b x 50 (with mudguards)
- 700c x 38 mm (with mudguards)
Rigid fork specifications:
- 400 x 50 mm (40 - 54 cm)
- 400 x 40 mm (56 - 64 cm)
Color: Gold

Laufradgröße / Wheelsize	700c
Rahmen / Frame	4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated
Gabel / Fork	4130 Chromoly, Natch tubing, TIG welded, brazed lugs, ED coated
Lenker / Handlebar	Salsa Cowbell 31.8
Griffe / Grips	Black Cork
Vorbau / Stem	ProMax DA-296
Steuersatz / Headset	Cane Creek 40, 1-1/8"
Bremshebel / Brake Lever	Shimano R7170
Schalthebel / Shifters	Shimano R7120
Bremsen / Brakes	TRP Sypre 60/160 mm
Kurbel / Crank	Disc - Flat Mount (160mm max rotor) – 25mm thick mount / 32mm bolt length
Innenlager / Bottom Bracket	Shimano RS520
Pedale / Pedals	-
Kette / Chain	KMC X12
Kassette / Cassette	Shimano R7101, 11-34t, 12-spd
Umwerfer / Front Derailleur	Shimano R7100 105
Schaltwerk / Rear Derailleur	Shimano R7100 105
Nabe, vorn / Hub front	Novatec 12x100mm 12 x 100 mm thru-axle,32h
Nabe, hinten / Hub Rear	Novatec 12 x 142 mm thru-axle, 32h
Spokes / Speichen	DT Swiss Champion 14G
Felgen / Rims	Alex Adventurer 2, 700c, 32h, tubeless ready
Sattel / Saddle	WTB Volt
Sattelstütze / Seat Post	Promax 27,2 x 300 (Offset on 54-64 cm)
Sattelklemme / Seat Clamp	30.0mm Surly Stainless
Reifen / Tire	Teravail Rampart 700 x 38 Light and Supple
Schutzbleche / Mudguards	-
Gepäckträger / Racks	-
Licht / Light	-
Gewicht / Weight	12,25 kg (56cm)

	40 cm	46 cm	50 cm	54 cm	56 cm	58 cm	60 cm	64 cm

Sitzrohrlänge / Seat Tube Length	400	460	500	540	560	580	600	640
Oberrohrlänge / Top Tube Length (effective)	500	520	540	555	570	585	605	625
Sitzrohrwinkel (°) / Seat Angle	75,5°	74°	73,5°	73,5°	73°	73°	72,5°	72,5°
Steuerohrwinkel / Head Angle (°)	71°	71,5°	72°	72,5°	73°	73°	73,5°	74°
Steuerohrlänge / Headtube Length	95	100	110	125	140	160	180	200
BB Drop	70	70	65	65	65	65	65	65
Kettenstrebenlänge / Chain Stay Length	425	425	425	425	425	425	425	425
Gabelvorbiegung / Fork Offset	50	50	50	50	40	40	40	40
Radstand / Wheelbase	993	994	1007	1018	1012	1027	1036	1050
Überstandshöhe / Standover	720	751	778	806	827	846	866	895
Reach	363	366	379	389	393	402	409	423
Stack	531	538	544	560	580	599	620	641
Kurbellänge / Crank Arm Length	165	170	170	175	175	175	175	175
Lenkerbreite / Handlebar Width	400	400	400	420	440	440	460	460
Vorbaulänge / Stem Length	70	80	80	100	100	120	120	120

Alle Angaben in mm sofern nicht anders angegeben / All measurements in mm unless otherwise stated
Irrtümer vorbehalten / Errors excepted
