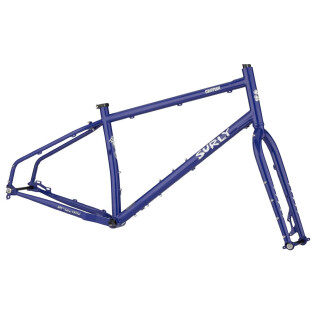

The Grappler frame kit from Surly is the ideal basis for a 27.5" Trail gravel bike. The MTB-heavy geometry, the large tire clearance of 2.8" and the option of dropper post mounting means you can also ride single trails with a drop bar without any problems. The numerous fastening eyelets for water bottle holders, luggage racks and bags make the robust steel frame ready for bike packing tours.
- Dropbar trail bike frame kit made of 100% Surly 4130 CroMoly, natch tubing, double butted main frame, gusset reinforcements on top and down tube, TIG welded, electrocoating to prevent rust, not corrected for suspension travel
- Incl. 1 1/8” Disc fork made of 100% Surly 4130 CroMoly, natch tubing, double butted, TIG welded, electrocoating to prevent rust, 15x110mm installation width, with mounting eyes for mudguard and luggage rack
- Rear triangle width: 12x148mm, Gnot-Boost horizontal dropouts with derailleur hanger, compatible with 142mm
- Own rear triangle design compatible with single speed or gear hub drives
- Seat post: 30.9mm, Stealth dropper posts compatible
- Head rate: ZS44/28.6 | EC44/30
- Front derailleur: 34.9mm, top pull
- Bottom bearing: 73mm BSA
- Chainring clearance: 48 teeth max.
- Tire clearance: 27.5x2.8” / 29x2.1
- Incl. Surly seat clamp 33.1mm and thru axles
Technical specifications:
- Frame: 100% Surly Chromoly steel, Natch tube, double butted main triangle, TIG welded, E.D. coated
- Fork: 100% Surly Chromoly steel, Natch tube, double butted fork blades, TIG welded, E.D. coated
- Rear Dropout Configuration: Horizontally slotted with optional vertical deflation
- Distance rear wheel hub: "Gnot-Boost" 145mm; 12 x 142mm or 12 x 148mm (Surly axle included); 10 x 135 mm with Surly 10/12 adapter washers (not included)
- Front hub spacing: 15 x 110 mm (Surly axle included)
- Rear brake: disc — 51mm I.S. (203mm maximum rotor)
- Front brake: disc — 51mm I.S. (203mm maximum rotor)
- Head tube: Ø34mm
- Head rate: EC34 or ZS34
- Seat post: Ø30.9 mm
- Front derailleur: High Direct Mount Top-Pull (Ø34.9mm), 26mm offset adapter (not included) for 142 or 135mm rear hub spacing, 29mm offset Adapter (not included) for 148 mm rear wheel hub spacing
- Max chainring (CL):
- 1x (mtn): 36T
- 2x (mtn): 36/26T
- 1x (Boost): 38T
- 2x (Boost): 39/32T
- Bottom bracket: 73 mm BSA, with thread
- Tyre clearance frame:
- 27.5 x 3” (27.5 x 2.8 inches with fenders)
- 29 x 2.1-2.5” with or without mudguard (2.1 inches of clearance with the wheel all the way forward; 2.5 inches of clearance with the wheel all the way back in the dropout)
- Tire clearance fork:
- 27.5 x 2.8” (27.5 x 2.6 inches with fenders)
- 29 x 2.2” (29 x 2.0" with fender)
- Rigid fork specification: 420 x 50 mm
- Brackets frame: 3 brackets on the upper and lower down tube; Bottle holder on the seat tube for frame sizes S-XL
- Brackets fork: 3 brackets on each fork blade
- Rack mounting frame: Yes (top and bottom thread)
- Rack mounting fork: Yes (top and middle blade with thread)
| |
XS |
S
|
|
|
|
| Reach |
381 |
405 |
420 |
444 |
458 |
| Stack |
585 |
604 |
623 |
641 |
660 |
| Sitzrohrlänge (C-T) / Seat Tube Length |
316 |
386 |
437,2 |
488 |
539 |
| Sitzrohrwinkel (°) / Seat Angle |
73° |
73° |
73° |
73° |
73° |
| Steurohrlänge / Headtube Length |
160 |
180 |
200 |
220 |
240 |
| Steurohrwinkel (°) / Head Angle |
69,5° |
69,5° |
69,5° |
69,5° |
69,5° |
| Oberrohrlänge (effektiv) / Top Tube Length (effective) |
560 |
590 |
610 |
640 |
660 |
| BB Drop |
50 |
50 |
50 |
50 |
50 |
| Kettenstrebenlänge / Chain Stay Length |
425 |
425 |
425 |
425 |
425 |
| Fork Offset |
50 |
50 |
50 |
50 |
50 |
| Radstand / Wheelbase |
1057 |
1088 |
1109 |
1140 |
1162 |
| Überstandshöhe / Standover |
719 |
762 |
796 |
830 |
896 |
| Vorbaulänge / Stem Length |
60 or 70 |
60 or 70 |
60 or 70 |
60 or 70 |
60 or 70 |
| Kurbellänge / Crank Arm Length |
170 |
170 |
175 |
175 |
175 |
| Lenkerbreite / Handlebar Width (dropcenter - center) |
400 |
420 |
440 |
460 |
480 |
Alle Angaben in mm sofern nicht anders angegeben / All measurements in mm unless otherwise stated Irrtümer vorbehalten / Errors excepted
