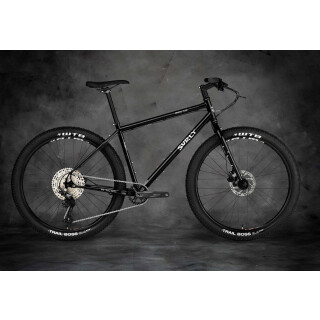

The Surly Bridge Club is there for all excursions, whether planned or unplanned. If you're running out of time on your next off-road tour, you can quickly and easily switch to the next road. Conversely, if you get the off-road feeling on your next tour, the Bridge Club is ready for detours through the forest without having to make any compromises. It is the perfect all-round travel, touring and bikepacking bike. In the 27.5" version, it is perfect for off-road tours and allows even wider tires. With the built-in 2.4 WTB tires, you can also make good progress on paved paths. The tried and tested Shimano Deore RD-M5100 rear derailleur, in combination with an 11-51 tooth cassette, offers a generous gear ratio that allows you to climb high passes even when fully loaded.
Features:
- Frame: 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated
- Fork: Construction 4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, ED coated
- Tire clearance for 700x47 mm (with or without mudguard), 27.5x2.8" tires (27.5x2.6" with mudguard) and 26x3" Tires (26x2.8" with mudguard)
- Bottle holder eyelets frame: 2 three-pack (XS) 1 standard + 2 three-pack (S - XL)
- Bottle holder eyelets fork: 2 three-pack
- Loops for luggage racks
- Loops for mudguards
- Shimano Cues gears with 11-50 tooth cassette
- Hydraulic Tektro disc brakes
Product safety information
Manufacturer information:
Surly Bikes
6400 W 105th Street
Minnesota
Bloomington, Vereinigte Staaten, 55438
derby@surlybikes.com
https://www.surlybikes.com
| Laufradgröße / Wheelsize |
27,5 |
| Rahmen / Frame |
4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated |
| Gabel / Fork |
4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, ED coated |
| Lenker / Handlebar |
Salsa Bend |
| Griffe / Grips |
Velo Black |
| Vorbau / Stem |
Promax 31,8mm |
| Steuersatz / Headset |
Cane Creek |
| Bremshebel / Brake Lever |
Tektro Hydro HD-M275/276 |
| Schalthebel / Shifters |
Shimano Cues |
| Bremsen / Brakes |
Tektro Hydro HD-M275/276 |
| Kurbel / Crank |
Shimano Cues, 32t |
| Innenlager / Bottom Bracket |
Shimano |
| Pedale / Pedals |
- |
| Kette / Chain |
KMC eGlide EPT |
| Kassette / Cassette |
Shimano Cues 11-50t, 11-speed |
| Umwerfer / Front Derailleur |
- |
| Schaltwerk / Rear Derailleur |
Shimano Cues U6000 GS |
| Nabe, vorn / Hub front |
Novatec, QR x 100mm, 6-bolt, 32h |
| Nabe, hinten / Hub Rear |
Novatec, QR x 141mm, 6-bolt, 32h |
| Spokes / Speichen |
Stainless |
| Felgen / Rims |
WTB ST i30 TCS 2.0, 27,5", 32h |
| Sattel / Saddle |
WTB Volt |
| Sattelstütze / Seat Post |
Promax 27,2 mm |
| Sattelklemme / Seat Clamp |
- |
| Reifen / Tire |
WTB Trail Boss 27.5 x 2.4", 27tpi, wire bead |
| Schutzbleche / Mudguards |
- |
| Gepäckträger / Racks |
- |
| Licht / Light |
- |
| Gewicht / Weight |
30 lb. 6 oz. for Medium |
Allgemeine Produkthinweise: Preis- und Farbänderungen vorbehalten. Hinweise zu abweichenden Bike-Spezifikationen: Aufgrund der aktuell durch das Corona-Virus verursachten Probleme in den Lieferketten sämtlicher Zulieferer kann das Bike, entgegen der hier kommunizierten Spezifikation, mit abweichenden Komponenten ausgeliefert werden.
PLEASE BE AWARE THERE CAN BE CHANGES DUE AVAILABILITY AND OTHER REASONS.
| |
XS |
SM
|
|
|
|
| Reach |
367 |
397 |
419 |
434,5 |
444 |
| Stack |
553 |
567 |
576 |
590 |
609 |
| Sitzrohrlänge (Mitte - Oberkante) / Seat Tube Length (C-T) |
335,6 |
406,4 |
457,2 |
508 |
558,8 |
| Oberrohrlänge / Top Tube Length (effective) |
545 |
570 |
595 |
615 |
630 |
| Sitzrohrwinkel / Seat Angle (°) |
73° |
73° |
73° |
73° |
73° |
| Steurohrlänge / Headtube Length |
110 |
120 |
130 |
145 |
165 |
| Steurohrwinkel / Head Angle (°) |
70° |
71° |
71° |
71° |
71° |
| BB Drop |
60 |
60 |
60 |
60 |
60 |
| Kettenstrebenlänge / Chain Stay Length |
435 |
435 |
435 |
435 |
435 |
| Gabelvorbiegung / Fork Rake |
45 |
45 |
45 |
45 |
45 |
| Radstand / Wheelbase |
1032 |
1047,5 |
1073 |
1093 |
1109 |
| Überstandshöhe / Standover |
709 |
750,5 |
780 |
812 |
845,5 |
| Vorbaulänge / Stem Length |
80 |
80 |
90 |
90 |
100 |
| Kurbellänge / Crank Arm Length |
170 |
170 |
175 |
175 |
175 |
| Lenkerbreite / Handlebar Width (dropcenter - Center) |
700 |
700 |
740 |
740 |
740 |
Alle Angaben in mm sofern nicht anders angegeben / All measurements in mm unless otherwise stated
Irrtümer vorbhalten / Errors excepted
