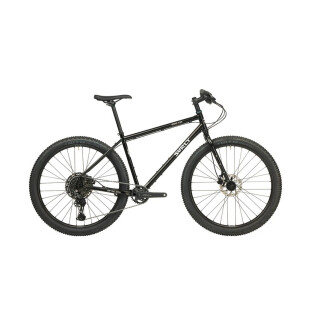

The Surly Bridge Club is there for all your excursions, whether planned or unplanned. If you're running out of time on your next off-road tour, you can quickly and easily switch to the nearest road. Conversely, if you get the urge to go off-road on your next tour, the Bridge Club is ready for detours through the forest without having to make any compromises. It's the perfect all-around travel, touring, and bikepacking bike. The 27.5" version is perfect for off-road tours and allows for even wider tires. With the built-in 2.4 WTB tires, you'll also make good progress on paved trails. The proven Shimano Deore RD-M5100 rear derailleur, combined with an 11-51 tooth cassette, offers generous gearing, allowing you to climb high passes even with a load.
Features:
- Frame: 4130 Chromoly, Natural tubing, double-butted main triangle, TIG welded, ED coated
- Fork: Cocktail 4130 Chromoly, Natural tubing, double-butted tapered fork blades, TIG welded, ED coated
- Tire clearance for 700x47 mm (with or without fenders), 27.5x2.8" Tires (27.5x2.6" with fenders) and 26x3" tires (26x2.8" with fenders)
- Bottle cage eyelets on frame: 2 three-pack (XS) 1 standard + 2 three-pack (S - XL)
- Bottle cage eyelets on fork: 2 three-pack
- Loops for luggage rack
- Loops for fenders
- Shimano Cues drivetrain with 11-50 tooth cassette
- Tektro hydraulic disc brakes
Product safety information
Manufacturer information:
Surly Bikes
6400 W 105th Street
Minnesota
Bloomington, Vereinigte Staaten, 55438
derby@surlybikes.com
https://www.surlybikes.com
Responsible person:
Cosmic Sports GmbH
Leyher Str. 47
Bayern
Fürth, Deutschland, 90763
info@cosmicsports.de
https://www.cosmicsports.de
| Laufradgröße / Wheelsize |
27,5 |
| Rahmen / Frame |
4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated |
| Gabel / Fork |
4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, ED coated |
| Farbe / Color |
Trevor´s Closet Black |
| Lenker / Handlebar |
Salsa Bend |
| Griffe / Grips |
Velo Black |
| Vorbau / Stem |
Promax DA-296, 31,8mm |
| Steuersatz / Headset |
Cane Creek 40 |
| Bremshebel / Brake Lever |
Tektro Hydro HD-M275/276 |
| Schalthebel / Shifters |
Shimano Cues U6000 |
| Bremsen / Brakes |
Tektro Hydro HD-M275/276 |
| Kurbel / Crank |
Shimano Cues U6000, 32t |
| Innenlager / Bottom Bracket |
Shimano BB-MT501 |
| Pedale / Pedals |
- |
| Kette / Chain |
KMC eGlide EPT |
| Kassette / Cassette |
Shimano Cues LG400, 11-50t, 11-speed |
| Umwerfer / Front Derailleur |
- |
| Schaltwerk / Rear Derailleur |
Shimano Cues U6000 GS |
| Nabe, vorn / Hub front |
Novatec, QR x 100mm, 6-bolt, 32h |
| Nabe, hinten / Hub Rear |
Novatec, QR x 141mm, 6-bolt, 32h |
| Spokes / Speichen |
Stainless 14g black |
| Felgen / Rims |
WTB ST i30 TCS 2.0, 27,5", 32h |
| Sattel / Saddle |
WTB Volt |
| Sattelstütze / Seat Post |
Promax 27,2mm x 350mm,12mm offset |
| Sattelklemme / Seat Clamp |
Surly Stainless 30,0 |
| Reifen / Tire |
WTB Trail Boss 27.5 x 2.4", 27tpi, Wire Bead |
| Schutzbleche / Mudguards |
- |
| Gepäckträger / Racks |
- |
| Licht / Light |
- |
| Gewicht / Weight |
30 lb. 6 oz. for Medium |
Allgemeine Produkthinweise: Preis- und Farbänderungen vorbehalten.
PLEASE BE AWARE THERE CAN BE CHANGES DUE AVAILABILITY AND OTHER REASONS.
| |
XS |
SM
|
|
|
|
| Reach |
376 |
397 |
419 |
434,5 |
444 |
| Stack |
553 |
567 |
576 |
590 |
609 |
| Sitzrohrlänge (Mitte - Oberkante) / Seat Tube Length (C-T) |
335,6 |
406,4 |
457,2 |
508 |
558,8 |
| Oberrohrlänge / Top Tube Length (effective) |
545 |
570 |
595 |
615 |
630 |
| Sitzrohrwinkel / Seat Angle (°) |
73° |
73° |
73° |
73° |
73° |
| Steurohrlänge / Headtube Length |
110 |
120 |
130 |
145 |
165 |
| Steurohrwinkel / Head Angle (°) |
70° |
71° |
71° |
71° |
71° |
| BB Drop |
60 |
60 |
60 |
60 |
60 |
| Kettenstrebenlänge / Chain Stay Length |
435 |
435 |
435 |
435 |
435 |
| Gabelvorbiegung / Fork Rake |
45 |
45 |
45 |
45 |
45 |
| Radstand / Wheelbase |
1032 |
1047,5 |
1073 |
1093 |
1109 |
| Überstandshöhe / Standover |
709 |
750,5 |
780 |
812 |
845,5 |
| Vorbaulänge / Stem Length |
80 |
80 |
90 |
90 |
100 |
| Kurbellänge / Crank Arm Length |
170 |
170 |
175 |
175 |
175 |
| Lenkerbreite / Handlebar Width (dropcenter - Center) |
700 |
700 |
740 |
740 |
740 |
Alle Angaben in mm sofern nicht anders angegeben / All measurements in mm unless otherwise stated
Irrtümer vorbhalten / Errors excepted
