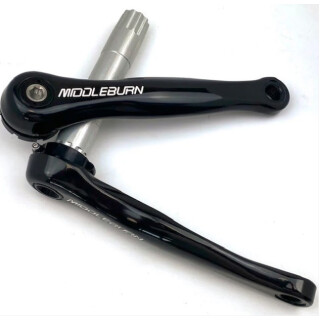

Middleburn cranks were first developed in 1991 and since then the cranks have undergone many improvements. This is the latest mountain bike crank designed for use with external bottom brackets but also with push-fit bottom brackets with different axle lengths. The design is the result of an advanced 3D and stress modelling technique that ensures they are some of the stiffest cranks on the market, yet lightweight. The cranks are hot forged from high quality 7075 T6 aluminium. They are fully CNC machined before being hand polished, anodized and then hand finished.
- Use with external bottom brackets type HT2 (24mm diameter)
- Weight: approx. 547g (RS8-X-175 including fittings)
- Q-factor: approx. 182mm
- Lengths: 175mm, 170mm and 165mm
- Color: Black or Silver
- Compatible with Hollow Tech 2 bottom brackets and Push-Fit bottom brackets
- Made from 7075 T6 aluminum (hot forged, CNC machined, anodized)
- Designed with advanced 3D and stress modeling for high stiffness and low weight
- Designed for specific X-Type Spider and X-Type UNO
- Standard chainline: 50mm; Boost, 54mm and 57mm Rohloff chainlines available
- Straight blade arm, compatible with bottom bracket widths 68/73mm
- Supplied with axle, axle nuts, bearing preload ring and Spider/UNO lockring
