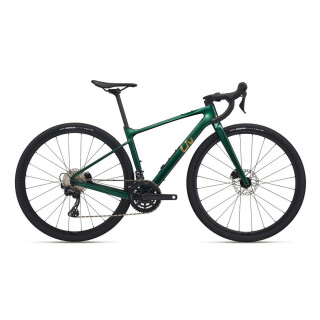

The Devote Advanced is your first choice for riding fast wherever your gravel muse takes you. It's a versatile bike that combines speed and durability, ready for race days, rest days and multi-day adventures.
Ultralight agility
The ultralight Advanced Carbon frame and fork ensure rapid acceleration, while internal cable routing optimizes your cockpit and creates space for your essential accessories. And the revised geometry puts you in a more aggressive position, increasing traction and stability and allowing more control at speed and on descents.
Superior compliance and control
The Contact XR D-Fuse handlebar features a 5-degree back sweep and flare drop for a comfortable and ergonomic grip. Selected models are also equipped with the Contact D-Fuse seat post and one with a dropper post. Proprietary D-Fuse components absorb shock and reduce vibration for less fatigue and more fun. on epic journeys.
Unsurpassed versatility
With the flip chip dropout you can adjust the length of the wheelbase and the tire clearance on the rear wheel to adapt to the conditions. A shorter wheelbase ensures a responsive ride and quick acceleration. A longer wheelbase provides more stability and provides space for larger tires and additional traction. You can also store a multitool or snacks in the integrated storage space in the down tube so that nothing slows you down.
| Laufradgröße / Wheelsize |
700c |
| Rahmen / Frame |
Advanced Carbon Rahmen, 12x142 mm Max. Reifenfreiheit: 45mm |
| Gabel / Fork |
Advanced Vollcarbon Gabel, OD1 Gabelschaft, 12x100 mm |
| Lenker / Handlebar |
GIANT Contact XR D-Fuse
|
| Griffe / Grips |
Liv All Condition
|
| Vorbau / Stem |
GIANT Contac ICR |
| Steuersatz / Headset |
integrated |
| Bremshebel / Brake Lever |
Shimano GRX RX-610 HRD
|
| Schalthebel / Shifters |
Shimano GRX RX-610, 2-fach
|
| Bremsen / Brakes |
Shimano GRX BR-RX410 HRD, 160mm |
| Kurbel / Crank |
FSA Omega Modular AGX+, 48/32T Kettenblätter |
| Innenlager / Bottom Bracket |
FSA BB-AL86 |
| Pedale / Pedals |
- |
| Kette / Chain |
KMC X-12 |
| Kassette / Cassette |
Shimano CS-HG710, 11-36T
|
| Umwerfer / Front Derailleur |
Shimano GRX RX-820 |
| Schaltwerk / Rear Derailleur |
Shimano GRX RX-820, 12-fach |
| Nabe, vorn / Hub front |
GIANT P-X2 Disc |
| Nabe, hinten / Hub Rear |
GIANT P-X2 Disc |
| Spokes / Speichen |
GIANT P-X2 Disc |
| Felgen / Rims |
GIANT P-X2 Disc Tubeless Ready |
| Sattel / Saddle |
Liv Approach |
| Sattelstütze / Seat Post |
GIANT Contact Switch Vario Stütze 30.9 mm (XS-M:75mm; L:100mm) mit 30.9 mm und D-Fuse Stützen kompatibel
|
| Sattelklemme / Seat Clamp |
- |
| Reifen / Tire |
GIANT CrossCut AT1, 700x38c, Tubeless Ready, 60 TPI Auslieferung schlauchlos
|
| Schutzbleche / Mudguards |
- |
| Gepäckträger / Racks |
kompatibel mit GIANT Rack-It Metro (Lite) (nicht enthalten) |
| Licht / Light |
- |
| Gewicht / Weight |
9,5 kg (S) |
| |
|
Spezifikations-, Preis- und Farbänderungen vorbehalten.
PLEASE BE AWARE THERE CAN BE CHANGES DUE AVAILABILITY AND OTHER REASONS.
.
| |
XS |
S
|
|
L |
| |
short/long |
short/long |
short/long |
short/lon |
| Sitzrohrlänge (Mitte - Oberkante) / Seat Tube (C-T) |
390 |
420 |
465 |
500 |
| Sitzrohrwinkel / Seat Angle (°) |
74,5° / 74,4° |
74,5° / 74,4° |
74,5° / 74,4° |
74,5° / 74,4° |
| Steurohrlänge / Headtube Length |
90 |
110 |
140 |
160 |
| Steurohrwinkel / Head Angle (°) |
70° / 69,9° |
70,5° / 70,4° |
71° / 70,9° |
71° / 70,9° |
| Oberrohrlänge / Top Tube Length |
525 |
535 |
545 |
555 |
| BB Drop |
80 / 81 |
80 /81 |
80 / 81 |
80 / 81 |
| Kettenstrebenlänge / Chain Stay Length |
425 / 435 |
425 / 435 |
425 / 435 |
425 / 435 |
| Gabelvorbiegung / Fork Rake |
50 |
50 |
50 |
50 |
| Gabelnachlauf / Trail |
78,4 / 82 |
75 / 78,5 |
71,6 / 75.1 |
71,6 / 75 |
| Radstand / Wheelbase |
1012 / 1022 |
1019 / 1029 |
1026 /1036 |
1043 /1052 |
| Überstandshöhe / Standover |
681 / 688 |
708 / 715 |
748 / 755 |
779 / 786 |
| Reach (mm) |
380 / 379 |
384 / 383 |
386 / 385 |
391 / 389 |
| Stack (mm) |
523 / 524 |
544 / 545 |
574 / 575 |
593 / 594 |
| Vorbaulänge / Stem Length |
50 |
60 |
70 |
80 |
| Kurbellänge / Crank Arm Length |
165 |
170 |
172,5 |
172,5 |
| Lenkerbreite / Handlebar Width (dropcenter - center) |
400 |
400 |
420 |
420 |
Alle Angaben in mm sofern nicht anders angegeben / All measurements in mm unless otherwise stated
Irrtümer vorbehalten / Errors excepted
