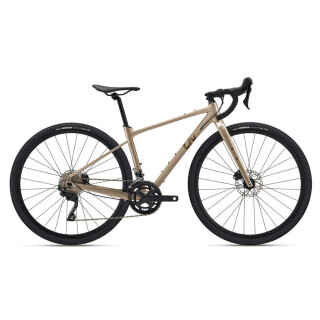

The Devote was designed to satisfy your gravel adventure. With its balanced mix of performance and durability, this versatile bike is ready for anything - from short jaunts into the woods to long, winding routes to your first gravel race.
Light and slim
The robust yet lightweight ALUXX aluminum frame with an advanced carbon fork ensures a smooth and forgiving ride, which is particularly practical when you're on a less traveled road. The revised geometry puts you in a performance-oriented position and gives you more control, whether you're accelerating or swerving downhill to the swimming hole.
Outstanding comfort and control
The Contact XR D-Fuse handlebar features a 5-degree back sweep and flare drop for a comfortable and ergonomic grip. The Contact D-Fuse seat post can be exchanged for a round 30.9 mm or 27.2 mm seat post. Proprietary D-Fuse components absorb shock and reduce vibration for less fatigue and more fun riding. on the most beautiful routes.
Unsurpassed versatility
With the flip chip dropout you can adjust the length of the wheelbase and the tire clearance on the rear wheel to adapt to the conditions. A shorter wheelbase ensures a responsive ride and quick acceleration. A longer wheelbase provides greater stability and provides space for larger tires and additional traction.
- Frame sizes: XS, S, M, L
- Color: Sandshell
Product safety information
Manufacturer information:
Giant
, ,
| Wheelsize |
700c |
| Frame |
AluxX Frame, flip chip dropout, 12x142 mm Max. tire clearance: 45mm (short), 53 mm (long)
|
| Fork |
Advanced full carbon Fork, OD1 steerer, 12x100 mm |
| Handlebar |
GIANT Contact XR D-Fuse
|
| Grips |
Liv All Condition
|
| Stem |
GIANT Contact |
| Headset |
integrated |
| Brake Lever |
Shimano GRX RX-610 HRD
|
| Shifters |
Shimano GRX RX-610, 2-fold
|
| Brakes |
Shimano GRX BR-RX410 HRD, 160mm |
| Crank |
FSA Omega Modular AGX+, 48/32T chainrings |
| Bottom Bracket |
FSA BB-AL86 |
| Pedals |
- |
| Chain |
KMC X-12 |
| Cassette |
Shimano 105, 11-34T |
| Front Derailleur |
Shimano GRX RX-820
|
| Rear Derailleur |
Shimano GRX RX-820, 12-speed |
| Hub front |
GIANT S-X2 Disc
|
| Hub Rear |
GIANT S-X2 Disc
|
| Spokes |
GIANT S-X2 Disc
|
| Rims |
GIANT S-X2 Disc, Tubeless Ready |
| Saddle |
Liv Approach |
| Seat Post |
GIANT D-Fuse compatible with 30.9 mm supports
|
| Seat Clamp |
- |
| Tire |
Maxxis Rambler / Ravager, 700x40c, Tubeless Ready, 120 TPI Delivery tubeless |
| Mudguards |
- |
| Racks |
Compatible with GIANT Rack-It Metro (Lite) (not included) |
| Accessories (partially installed) |
Tubeless Kit (sealant, valves, tire levers, valve core tool, instruction manual) |
| Weight |
9.84 kg (S) |
| |
|
PLEASE BE AWARE THERE CAN BE CHANGES DUE AVAILABILITY AND OTHER REASONS.
.
| |
XS |
S
|
|
L |
| |
short/long |
short/long |
short/long |
short/lon |
| Seat Tube (C-T) (mm) |
390 |
420 |
465 |
500 |
| Seat Angle (°) |
74,5° / 74,4° |
74,5° / 74,4° |
74,5° / 74,4° |
74,5° / 74,4° |
| Headtube Length (mm) |
90 |
110 |
140 |
160 |
| Head Angle (°) |
70° / 69,9° |
70,5° / 70,4° |
71° / 70,9° |
71° / 70,9° |
| Top Tube Length (mm) |
525 |
535 |
545 |
555 |
| BB Drop (mm) |
80 / 81 |
80 /81 |
80 / 81 |
80 / 81 |
| Chain Stay Length (mm) |
430 / 440 |
430 / 440 |
430 / 440 |
430 / 440 |
| Fork Rake (mm) |
50 |
50 |
50 |
50 |
| Trail (mm) |
78,4 / 82 |
75 / 78,5 |
71,6 / 75.1 |
71,6 / 75 |
| Wheelbase (mm) |
1017 / 1027 |
1024 / 1034 |
1031 /1041 |
1043 /1052 |
| Standover (mm) |
681 / 688 |
708 / 715 |
748 / 755 |
779 / 786 |
| Reach (mm) |
380 / 379 |
384 / 383 |
386 / 385 |
391 / 389 |
| Stack (mm) |
523 / 524 |
544 / 545 |
574 / 575 |
593 / 594 |
| Stem Length (mm) |
50 |
60 |
70 |
80 |
| Crank Arm Length (mm) |
165 |
170 |
172,5 |
172,5 |
| Handlebar Width (dropcenter - center) (mm) |
400 |
400 |
420 |
420 |
Errors excepted
