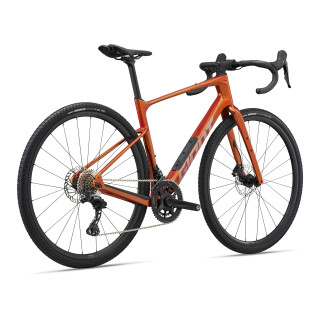

This lightweight carbon high-flyer lets you set your own goals if you like to ride fast and carefree off-road: set a target and race for the win, or discover how far you can go on a weekend adventure. With its carbon frame, adjustable wheelbase and internal storage for your essentials, the Revolt Advanced is ready for anything.
Fast and Versatile
- The Advanced Carbon frame and fork ensure efficiency, low weight and optimal control. The flip chip on the rear dropout lets you set the wheelbase in two positions: short for faster handling or long for more tire clearance (up to 53 mm) and more stability. You can use the included D-Fuse seatpost* for more flex and compliance, or switch to a traditional 30.9mm round seatpost or a dropper post.
Improved compliance
- Lowered, small-diameter seat stays absorb shock and vibration on all types of gravel without compromising stiffness when cornering, sprinting or climbing. Each model also features the latest Contact D-Fuse carbon handlebars and D-Fuse seatposts, which smooth out rough terrain, improve control and minimize fatigue on long journeys.
Smart integration
- Internally routed cables provide a clean, uncluttered cockpit aesthetic and improved aerodynamics. An easily accessible storage compartment in the downtube lets you safely stow tools, snacks and other essentials. Additional integrated mounts on the top tube, fork and rear dropout allow easy modification with additional panniers or mudguards.
Highlights
- With the new carbon frameset with fully integrated cable routing, this gravel bike lets you push your limits on different terrain. The D-Fuse seat post and handlebar absorb shocks and vibrations so you have more control and less fatigue. A flip chip on the all-new rear carbon dropout lets you adjust the wheelbase and tire clearance. You can choose the included D-Fuse seatpost for maximum compliance, or a 30.9mm round or dropper seatpost. Details include a new internal storage compartment on the downtube and additional frame mounts to attach bottle cages, racks and other accessories.
| Laufradgröße / Wheelsize |
700c |
| Rahmen / Frame |
GIANT Advanced Carbon Rahmen, Flip Chip Ausfallende, 12x142 mm Max. Reifenfreiheit: 45mm (kurz), 53 mm (lang)
|
| Gabel / Fork |
GIANT Advanced Vollcarbon Gabel, OD1 Gabelschaft, 12x100 mm |
| Lenker / Handlebar |
GIANT Contact XR D-Fuse |
| Griffe / Grips |
GIANT Stratus Lite 3.0 |
| Vorbau / Stem |
GIANT Contact Aerolight |
| Steuersatz / Headset |
integrated OverDrive |
| Bremshebel / Brake Lever |
Shimano GRX RX-610 HRD |
| Schalthebel / Shifters |
Shimano GRX RX-610, 2x12-fach |
| Bremsen / Brakes |
Shimano GRX BR-RX410 HRD, 160mm
|
| Kurbel / Crank |
FSA Omega Modular CK, 48/32T |
| Innenlager / Bottom Bracket |
FSA BB-AL86
|
| Pedale / Pedals |
- |
| Kette / Chain |
KMC X-12SL-1
|
| Kassette / Cassette |
Shimano CS-HG710, 11-36 Zähne
|
| Umwerfer / Front Derailleur |
|
| Schaltwerk / Rear Derailleur |
Shimano GRX RX-820, 12-fach |
| Nabe, vorn / Hub front |
GIANT P-X2 Disc |
| Nabe, hinten / Hub Rear |
GIANT P-X2 Disc |
| Spokes / Speichen |
GIANT P-X2 Disc |
| Felgen / Rims |
GIANT P-X2 Disc, Tubeless Ready |
| Sattel / Saddle |
GIANT Approach |
| Sattelstütze / Seat Post |
GIANT Contact D-Fuse mit 30.9 mm (auch Vario) Stützen kompatibel |
| Sattelklemme / Seat Clamp |
- |
| Reifen / Tire |
GIANT CrossCut Grip, 700x40c, Tubeless Ready, 60 TPI Auslieferung schlauchlos
|
| Zubehör (teilw. verbaut) / Extras |
Tubeless Kit (Dichtmittel,Ventile, Reifenheber,Ventilkernwerkzeug, Bedienungsanleitung)
|
| Gepäckträger / Racks |
kompatibel mit GIANT Rack-It Metro (Lite) |
| Gewicht / Weight |
|
Spezifikations-, Preis- und Farbänderungen vorbehalten.
PLEASE BE AWARE THERE CAN BE CHANGES DUE AVAILABILITY AND OTHER REASONS.
| |
S
Short /Long
|
|
|
|
|
| Sitzrohrlänge (Mitte - Oberkante) / Seat Tube Length (C-T) (mm) |
450 |
470 |
490 |
510 |
530 |
| Sitzrohrwinkel / Seat Angle |
73,5° 73,5°73,5°
|
73,5° |
73° |
73° |
73° |
| Steuerrohrlänge / Headtube Length (mm) |
135 |
150 |
165 |
180 |
195 |
| Steuerrohrwinkel / Head Angle |
71° |
71,5° |
72° |
72° |
72° |
| Oberrohrlänge / Top Tube Length (mm) |
550 |
560 |
575 |
585 |
600 |
| Kettenstrebenlänge / Chain Stay Length (mm) |
425/ 435 |
425/435 |
425/435425/435425/ 435 |
425/435425/ 435 |
425/ 435 |
| Gabelvorbiegung / Fork Rake (mm) |
50 |
50 |
50 |
50 |
50 |
| Gabelnachlauf / Trail (mm) |
72/ 75 |
68/ 72 |
65/ 68 |
65/ 68 |
65/ 68 |
| Radstand / Wheelbase (mm) |
1020/ 1030 |
1026/ 1036 |
1031/ 1041 |
1041/ 1051 |
1056/1066 |
| Überstandshöhe / Standover (mm) |
740/ 747 |
757/ 764 |
774/ 780 |
791/ 797 |
807/814 |
| Reach (mm) |
381 |
387 |
391 |
397 |
407 |
| Stack (mm) |
570 |
586 |
602 |
616 |
630 |
| Vorbaulänge / Stem Length (mm) |
60 |
70 |
80 |
80 |
90 |
| Kurbellänge / Crank Arm Length (mm) |
170 |
172,5 |
172,5 |
175 |
175 |
| Lenkerbreite / Handlebar Width (dropcenter - Center) (mm) |
420 |
440 |
440 |
460 |
460 |
Irrtümer vorbhalten / Errors excepted
