An unprecedented gravel bike with real suspension. It's the most off-road capable and on-road comfortable road bike ever made. Kingpin Suspension, a revolutionary, super-light suspension that lets you ride harder on dirt and more smoothly on pavement. Relaxed enough to go long, sporty en ough to shred, Topstone Carbon offers a riding position that brings comfort and control on all-day adventures and confidence for singletrack session. Plenty of places to store gear and water, with a multi-position mount on the downtube, and more on the top tube, seat tube, and under the down tube. There's even mounts on the forks. Extra bottle? Check. Sleeping pad? You bet. Kitchen sink? Maybe.
- Cannondale Topstone Carbon 6
- BallisTec carbon frameset with Kingpin suspension

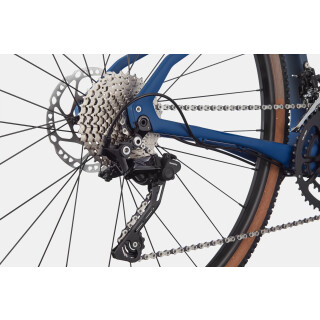

- Shimano GRX 400 group w/hydraulic disc brakes
- WTB Riddler TCS tyres 700x37, tubeless ready
Technologies:
KingPin Suspension A thru-axle pivot in the seat tube allows the entire back of the frame – the rear stays, seat tube, even the rear of the top tube – to flex like a series of connected leaf-springs, absorbing bumps and road vibration without the weight and complexity of a shock and linkages. Incredibly light and robust, Kingpin Suspension gives you up to 30mm of suspension that improves comfort, traction and control whether you’re seated or standing, letting you roll smoother or push it harder than ever.
Proportional Response
Suspension and overall ride-feel are custom tuned by size, using different carbon layup and tube dimensions, meaning that each size has perfect suspension response and ideal frame stiffness. No setup, no hassle. Just get on and go. Proportional Response and Kingpin Suspension function in harmony to provide an ultra-smooth ride and confident traction for every size of bike, and rider.
| Laufradgröße / Wheelsize |
700c |
| Rahmen / Frame |
BallisTec Carbon Frame, Kingpin suspension system, 12x142 Speed Release Thru-axle, dropper post compatible, direct line cable routing |
| Gabel / Fork |
BallisTec Full Carbon, 1-1/8" to 1,5" steerer, 55mm OutFront offset, flat mount disc, internal routing, 12x100 speed release thru axle |
| Lenker / Handlebar |
Cannondale 3, butted 6061 alloy, 16 deg flare drop
|
|
| Griffe / Grips |
Cannondale Grip Bar Tape w/Gel, 3.5mm |
| Vorbau / Stem |
Cannondale 3, 6061 alloy, 7° |
| Steuersatz / Headset |
Integrated, 1.5" lower to 1-1/8" upper w/ reducer, 25mm Alloy top cap |
| Bremshebel / Brake Lever |
Shimano GRX 400 hydro disc |
| Schalthebel / Shifters |
Shimano GRX 400 2x10 |
| Bremsen / Brakes |
Shimano GRX 400 hydraulic disc, 160/160mm RT64 rotor |
| Kurbel / Crank |
Cannondale, BB30a, OPI SpideRing, 46/30 |
| Innenlager / Bottom Bracket |
Cannondale BB30 |
| Pedale / Pedals |
- |
| Kette / Chain |
KMC X-10 |
| Kassette / Cassette |
Shimano HG500 11-36, 10-speed |
| Umwerfer / Front Derailleur |
-Shimano GRX 400 |
| Schaltwerk / Rear Derailleur |
Shimano GRX 400, Shadow RD+ |
| Nabe, vorn / Hub front |
Formula cartridge bearing, Centerlock, 12x100mm |
| Nabe, hinten / Hub Rear |
Formula cartridge bearing, Centerlock, 12x142mm |
| Spokes / Speichen |
Stainless Steel, 14g |
| Felgen / Rims |
WTB ST i23 TCS, 28h, tubeless ready |
| Sattel / Saddle |
Fabric Scoop Shallow Sport, steel rails |
| Sattelstütze / Seat Post |
Cannondale 3, 6061 Alloy, 27.2 x 350mm |
| Sattelklemme / Seat Clamp |
- |
| Reifen / Tyre |
WTB Riddler TCS Light, 700 x 37c, tubeless ready |
| Schutzbleche / Mudguards |
- |
| Gepäckträger / Racks |
- |
| Licht / Light |
-- |
| Gewicht / Weight |
|
|
|
|
XS |
SM |
MD |
|
|
| Sitzrohrlänge (Mitte - Oberkante) / Seat Tube Length (C-T) |
410 |
458 |
505 |
553 |
600 |
| Oberrohrlänge / Top Tube Length |
525 |
544 |
561 |
579 |
596 |
| Steurohrwinkel / Head Angle (°) |
70° |
71,2° |
71,2° |
71,2° |
71,2° |
| Sitzrohrwinkel / Seat Angle (°) |
73,1° |
73,1° |
73,1° |
73,1° |
73,1° |
| Steurohrlänge / Headtube Length |
97 |
131 |
165 |
198 |
232 |
| BB Drop |
69 |
69 |
69 |
69 |
69 |
| Kettenstrebenlänge / Chain Stay Length |
415 |
415 |
415 |
415 |
415 |
| Fork Rake |
55 |
55 |
55 |
55 |
55 |
| Trail |
66 |
58 |
58 |
58 |
58 |
| Radstand / Wheelbase |
999 |
1010 |
1030 |
1040 |
1060 |
| Überstandshöhe / Standover |
715 |
761 |
803 |
843 |
885 |
| Reach |
368 |
377 |
385 |
394 |
402 |
| Stack |
518 |
549 |
579 |
610 |
640 |
| Vorbaulänge / Stem Length |
|
|
|
|
|
| Kurbellänge / Crank Arm Length |
|
|
|
|
|
| Lenkerbreite / Handlebar Width (dropcenter - center) |
|
|
|
|
|
Alle Angaben in mm sofern nicht anders angegeben / All measurements in mm unless otherwise stated
Irrtümer vorbhalten / Errors excepted
