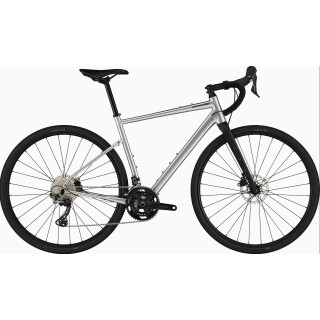

Straightforward, reliable and a whole hell of a lotta fun, the Topstone Alloy is a gravel bike crafted for those with a taste for adventure – and value. Roll light and free, or load it up for a long haul, Topstone’s comfortable ride, confident handling and up-for-anything capability make it the perfect partner on any road, anywhere.
Wide Ranging Capabilities
Clearance for big 45mm tires lets you push further into the rough stuff, and enjoy more grip and comfort on every ride. .
Load Up.
Roll Out. With plentiful gear and waterbottle mounts on the frame and fork, Topstone is ready to load up and go long.
- SmartForm C2 Alloy frame
- Full Carbon fork
- Anything Cage Mounts
- direct mount top tube mount
- threes bottle cages
- thru-axle fornt and rear
- Shimano GRX 800/600 2x11 drivetrain
- hydraulic Shimano GRX 400 disc brakes
- Vittoria Terreno Dry, 700x35c
Product safety information
Manufacturer information:
Cannondale
, ,
| Laufradgröße / Wheelsize |
700c |
| Rahmen / Frame |
Lightweight SmartForm C2 Alloy, 12x142 thru-axle, tapered headtube, BSA threaded BBm flat mount disc, StraightShot internal cable routing, multiple gear/bottle mounts |
| Gabel / Fork |
Topstone Carbon, 1-1/8" to 1.5" steerer, 55mm OutFront offset, flat mount disc, internal routing, 12x100 thru-axle, fender/gear mounts |
| Lenker / Handlebar |
Cannondale 3, butted 6061 alloy, 16 deg flare drop |
| Griffe / Grips |
Cannondale Grip Bar Tape w/Gel, 3.5mm |
| Vorbau / Stem |
Cannondale 3, 6061 alloy, 7° |
| Steuersatz / Headset |
Integrated, 1-1/8" - 1-1/2" |
| Bremshebel / Brake Lever |
Shimano GRX 600, hydro disc |
| Schalthebel / Shifters |
Shimano GRX 600, 10x2 |
| Bremsen / Brakes |
Shimano GRX 400, hydraulic disc, 160/160mm RT54 rotors |
| Kurbel / Crank |
Shimano GRX 600 46/30t |
| Innenlager / Bottom Bracket |
Shimano BBRS500 |
| Pedale / Pedals |
- |
| Kette / Chain |
KMC X-11 |
| Kassette / Cassette |
Shimano 105, 11-34, 11-speed |
| Umwerfer / Front Derailleur |
-Shimano GRX 800, braze-on |
| Schaltwerk / Rear Derailleur |
Shimano GRX 810, Shadow RD+ |
| Nabe, vorn / Hub front |
Formula cartridge bearing, 12x100mm centerlock |
| Nabe, hinten / Hub Rear |
Formula cartridge bearing, 12x142mm centerlock |
| Spokes / Speichen |
Stainless steel, 14g |
| Felgen / Rims |
WTB ST i23 TCS, 28h, tubeless ready |
| Sattel / Saddle |
Fizik Aliante Delta, S-alloy rails |
| Sattelstütze / Seat Post |
Cannondale 3, 6061 Alloy, 27.2 x 350mm |
| Sattelklemme / Seat Clamp |
- |
| Reifen / Tyre |
Vittoria Terreno Dry, 700x35c, foldable |
| Schutzbleche / Mudguards |
- |
| Gepäckträger / Racks |
- |
| Licht / Light |
- |
| Gewicht / Weight |
- |
BITTE BEACHTE, DASS ES AUFGRUND VON VERFÜGBARKEITEN SOWIE ANDEREN FAKTOREN ZU VORAB NICHT ANGEKÜNDIGTEN ÄNDERUNGEN KOMMEN KANN .
PLEASE BE AWARE THERE CAN BE CHANGES DUE AVAILABILITY AND OTHER REASONS:
| |
XS |
SM |
MD
|
|
|
| Sitzrohrlänge (Mitte - Oberkante) / Seat Tube Length (C-T) |
410 |
458 |
505 |
553 |
600 |
| Oberrohrlänge / Top Tube Length |
535 |
544 |
557 |
572 |
587 |
| Steurohrwinkel / Head Angle (°) |
70° |
71° |
71° |
71° |
71° |
| Sitzrohrwinkel / Seat Angle (°) |
73,1° |
73,1° |
73,1° |
73,1° |
73,1° |
| Steurohrlänge / Headtube Length |
86 |
115 |
147 |
180 |
212 |
| BB Drop |
75 |
75 |
75 |
75 |
75 |
| Kettenstrebenlänge / Chain Stay Length |
435 |
435 |
435 |
435 |
435 |
| Fork Rake |
55 |
55 |
55 |
55 |
55 |
| Trail |
72 |
65 |
65 |
65 |
65 |
| Radstand / Wheelbase |
1016 |
1027 |
1045 |
1065 |
1083 |
| Überstandshöhe / Standover |
703 |
744 |
784 |
824 |
864 |
| Reach |
368 |
377 |
385 |
394 |
402 |
| Stack |
518 |
549 |
579 |
610 |
640 |
| Vorbaulänge / Stem Length |
|
|
|
|
|
| Kurbellänge / Crank Arm Length |
|
|
|
|
|
| Lenkerbreite / Handlebar Width (dropcenter - center) |
|
|
|
|
|
Alle Angaben in mm sofern nicht anders angegeben / All measurements in mm unless otherwise stated
Irrtümer vorbhalten / Errors excepted
