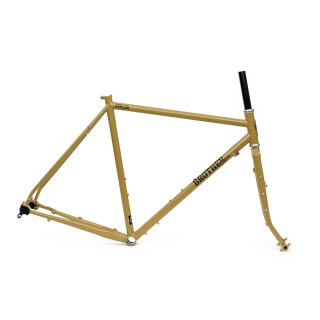

The Kepler has been a stalwart in our lineup for nearly a decade and now see’s some exciting design changes in 2024. The much-loved Kepler geometry remains, however, we’ve made some functional and cosmetic changes to bring the product in-line with what we’re looking for from a versatile steel frame such as the Kepler. These changes include:
- All new lugged steel fork with dynamo routing
- Internal cable routing for rear brake
- Brazed seat collar
- Bottle mounts on the down tube
- New Oak Leaf metal head badge
The Kepler can run either 700c or 650b wheels and has clearance for 700c x 45 or 650b x 48 tyres to keep you stable when the going gets tough. The frame is constructed from double butted 4130 chromoly steel, a functional tubing which provides the perfect balance of comfort and durability and we’ve applied an ED coating under the paint to protect against corrosion. It’s fully equipped to fit front and rear racks, mudguards and has three bottle mount positions if you’re loading up for a longer trip. To add to its bikepacking credentials the 2024 Kepler features triple cage mounts on each fork blade.
In the 9 years since it’s launch, we’ve sent Keplers to every corner of the globe, from the Australian outback to the hills of California, up to the Highlands of Scotland and along the coastal trails of Dorset. Whether taking part in a multi-day bikepacking race or simply tackling the daily commute, the Kepler gets you there in style and with a smile on your face..
- Tubing: 4130 Chromoly steel - double-butted main triangle, ED coated
- Brake compatibility: flat mount, 160mm max rotor size
- Rear Dropouts: 12x142mm TA (included)
- Seat post diameter: 27.2mm
- Headset: 1 1/8˝ threadless steerer/headset (not included)
- Front derailleur clamp diameter: 28.6 mm
- Chainring clearance: up to 52-39-30t triple, 50-34t double, 48t single
- Bottom bracket shell: 68mm bottom bracket - ISO threaded
- Tyre clearance: up to 700x45c or 650x48c
- Fork: 4130 Chromoly lugged fork - 300mm steerer, 12x100mm TA (included)
- Frame weight: 56cm = 2.25kg Fork (with uncut steerer): 1.2kg
- Tested to ISO 4210 standard
Headset not included!
|
50 cm |
|
54 cm |
|
58 cm |
|
| Sitzrohr (Mitte-Mitte) / Seat Tube (C-C) |
485 |
505 |
525 |
545 |
565 |
585 |
| Oberrohrlänge / Top tube (effective) |
520 |
530 |
545 |
560 |
575 |
595 |
| Steurohrlänge / Head Tube Length |
95 |
95 |
105 |
124 |
142 |
161 |
| Sitzrohrwinkel (°) / Seat Angle |
74,5° |
74 |
73,5 |
73 |
72,5 |
72 |
| BB Drop |
70 |
70 |
70 |
70 |
70 |
70 |
| Steurohrwinkel (°) / Head Angle |
71 |
71 |
71,5 |
72 |
72 |
72 |
| Kettenstrebenlänge / Chainstay Length |
430 |
430 |
430 |
435 |
435 |
435 |
| Gabellänge / Fork Length |
400 |
400 |
400 |
400 |
400 |
400 |
| Gabelvorbiegung / Fork Rake |
50 |
50 |
45 |
45 |
45 |
45 |
| Stack |
530 |
530 |
543 |
562 |
580 |
598 |
| Reach |
372 |
378 |
384 |
387 |
392 |
401 |
| Radstand / Wheelbase |
1009 |
1014 |
1014 |
1025 |
1035 |
1049 |
Alle Angaben in mm sofern nicht anders angegeben / All measurements in mm unless otherwise stated
Irrtümer vorbhalten / Errors excepted
