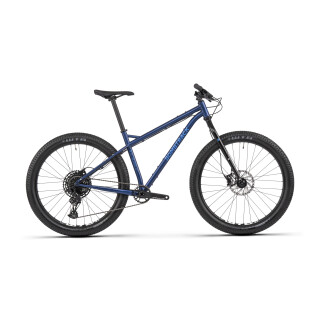

If you’re looking for a rigid adventure bike that you can also chuck around in the woods and isn’t phased by technical singletrack, then our Beyond+ is spot on. Starting with a double butted steel suspension corrected frame with a quad-butted ovalized downtube and matching Seido Steel BPS fork, this is the 4 x 4 of the Beyond line, capable of swallowing huge 27.5 x 2.8’’ WTB Ranger rubber on wide 35 mm rims for that go anywhere experience. Both frame and fork come with multiple mounting points, including offset triple cage mounts on the seat stays and forward-facing mounts on the fork for maximum clearance. SRAM SX Eagle will get you wherever you are going with its 11 - 50T cassette and Sram Level brakes with a 200 mm front rotor will haul you and your cargo back down to earth if you get a little carried away. Load it up and head off anywhere. ..
- Double butted suspension corrected crmo frame with rack and fender mounts and BSA bottom bracket.
- Toptube bag direct mounts, triple cage mounts on both seatstays, underneath and on top of the downtube, double cage mounts on the seattube.
- Stealth dropper post routing.
- Suspension corrected Bombtrack BPS crmo steel fork with fender, rack and triple cage mounts.
- Sram SX Eagle 12-speed drivetrain with 11 – 50 T cassette and 30 T direct mount chainring.
- Hydraulic Sram Level 2 piston brakes.
- Bombtrack GRAD Boost disc brake hubs with 15 and 12 mm through axles.
- Tubeless ready WTB ST i35 rims with tubeless ready WTB Ranger Tough / Fast rolling 2.8” tires.
| Laufradgröße / Wheelsize |
27,5" |
| Rahmen / Frame |
4130 double butted crmo, TA, rack / fender mounts, Boost spacing, stealth dropper ready, 73 mm BSA BB shell |
| Gabel / Fork |
BOMBTRACK BPS 4130 crmo, double butted blades, 1.1/2'' - 1.1/8'', fender / rack / triple cage mounts, internal hub dynamo cable routing |
| Lenker / Handlebar |
BOMBTRACK TRAIL flat bar, 31.8 mm, 9° backsweep, 4° upsweep, 7 mm rise |
| Griffe / Grips |
BOMBTRACK Scroll grips |
| Vorbau / Stem |
BOMBTRACK TRAMP forged alloy stem, 3° |
| Steuersatz / Headset |
Sealed semi integrated / external aheadset, 1.1/2'' - 1.1/8'''' |
| Bremshebel / Brake Lever |
SRAM LEVEL hydraulic |
| Schalthebel / Shifters |
SRAM SX-EAGLE 12-speed trigger shifter |
| Bremsen / Brakes |
SRAM LEVEL hydraulic disc brakes with 200 mm F / 180 mm R rotors |
| Kurbel / Crank |
TRUVATIV STYLO 6K aluminium crank, Boost DUB |
| Innenlager / Bottom Bracket |
SRAM DUB BSA 73 mm |
| Pedale / Pedals |
- |
| Kette / Chain |
SRAM NX EAGLE chain, 1/2'' x 11/128'', 118L |
| Kassette / Cassette |
SRAM PG-1210 EAGLE 12-speed, 11 - 50 T |
| Umwerfer / Front Derailleur |
- |
| Schaltwerk / Rear Derailleur |
SRAM SX EAGLE, clutch, long cage |
| Nabe, vorn / Hub front |
BOMBTRACK GRAD sealed hub, 6-bolt disc, 15 x 110 mm thru-axle |
| Nabe, hinten / Hub Rear |
BOMBTRACK GRAD sealed hub, XD driver, 6-bolt disc, 12 x 148 mm thru-axle |
| Spokes / Speichen |
Stainless Steel 14g |
| Felgen / Rims |
WTB ST i35 double wall, TCS 2.0, 32h |
| Sattel / Saddle |
BOMBTRACK Fuzz saddle |
| Sattelstütze / Seat Post |
BOMBTRACK YEW alloy seatpost, 30.9 mm x 400 mm |
| Sattelklemme / Seat Clamp |
BOMBTRACK ORIGIN forged alloy seatclamp, 34,9 mm |
| Reifen / Tyre |
WTB RANGER TCS TOUGH / FAST ROLLING 27.5'' x 2.8'', tubeless ready' |
| Schutzbleche / Mudguards |
- |
| Gepäckträger / Racks |
|
| Licht / Light |
- |
| Gewicht / Weight |
14,4 kg ( Size M) |
| |
|
| |
|
|
|
| |
S
|
|
|
|
| Sitzrohrlänge (C-T) / Seat Tube Length |
406 |
457 |
508 |
559 |
| Sitzrohrwinkel (°) / Seat Angle |
72 |
72 |
72 |
72 |
| Steurohrlänge / Headtube Length |
100 |
110 |
125 |
135 |
| Steurohrwinkel (°) / Head Angle |
68,5 |
68,5 |
68,5 |
68,5 |
| Oberrohrlänge / Top Tube Length |
575 |
598 |
622 |
651 |
| BB Drop |
70 |
70 |
70 |
70 |
| Kettenstrebenlänge / Chain Stay Length |
450 |
450 |
450 |
450 |
| Fork Offset |
51 |
51 |
51 |
51 |
| Trail |
87 |
87 |
87 |
87 |
| Radstand / Wheelbase |
1111 |
1135 |
1160 |
1188 |
| Überstandshöhe / Standover |
750 |
778 |
809 |
836 |
| Reach |
395 |
415 |
434 |
459 |
| Stack |
621 |
630 |
644 |
653 |
| Vorbaulänge / Stem Length |
50 |
50 |
50 |
50 |
| Kurbellänge / Crank Arm Length |
170 |
170 |
175 |
175 |
| Lenkerbreite / Handlebar Width (dropcenter - center) |
720 |
720 |
720 |
720 |
Alle Angaben in mm sofern nicht anders angegeben / All measurements in mm unless otherwise stated
Irrtümer vorbehalten / Errors excepted
