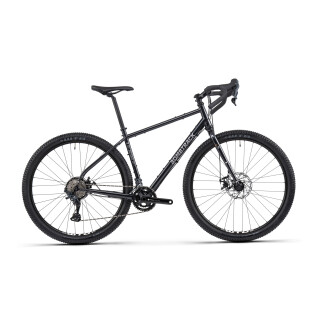

Our Beyond 1 is a drop bar, off-road adventure bike designed to take the rider wherever the compass guides them. The frame and fork are both made from reliable and lightweight 4130 double butted crmo tubing with a multitude of bottle and rack mounting options, joined to dropouts for thru-axles. Internal dynamo light cable routing also eliminates the possibility of snagging. Shifting is from Microshift and their new 2 x 10 Sword set mated with an 11 - 38T cassette and 40 / 28T chainset. Braking duties are handled by TRP Spyre C mechanical callipers. The WTB rims are tubeless-ready and both 27.5’’ (XS-S) and 29’’ sizes use the awesome all-condition WTB Ranger TCS tyres. All you need now is to choose a destination, pack up and head off.
- double butted Cromo Frame with rear light cable routing
- steel fork with rack, triple cage and fender mounts + internal dynamo wire routing.
- Rack and fender mounts
- 5x bottle mounts (3x triple boss) and top tube fuel bag direct mount.
- Microshift Sword 2x10 drivetrain
- TRP Spyre brakes
- WTB Ranger Tyres
| Laufradgröße / Wheelsize |
XS-S 27.5’’, M-XL 29’’ |
| Rahmen / Frame |
4130 double butted crmo, TA, rack / fender mounts, internal light cable routing, 73 mm BSA BB shell |
| Gabel / Fork |
4130 crmo, tapered double butted blades, 1.1/2'' - 1.1/8'' tapered steerer, with fender / rack / triple cage mounts |
| Lenker / Handlebar |
BOMBTRACK BEYOND travel bar, 31.8 mm, 30° flare |
| Griffe / Grips |
BOMBTRACK COMMAND bar tape |
| Vorbau / Stem |
BOMBTRACK WANDER forged alloy stem, +17° |
| Steuersatz / Headset |
sealed external aheadset, 1.1/2'' - 1.1/8'' |
| Bremshebel / Brake Lever |
Microshift SB-G7020 Dual Control Lever mechanic |
| Schalthebel / Shifters |
Microshift SB-G7020 Dual Control Lever 2 x 10 |
| Bremsen / Brakes |
TRP SPYRE C mechanic disc brakes with 180 mm F / 160 mm R rotors |
| Kurbel / Crank |
BOMBTRACK AMES forged aluminum crank, 24 mm spindle 42/28 t |
| Innenlager / Bottom Bracket |
BSA sealed 73 mm |
| Pedale / Pedals |
- |
| Kette / Chain |
KMC X10 chain, 1/2'' x 11/128'', 114L |
| Kassette / Cassette |
Microshift 10-speed, 11 - 38 T |
| Umwerfer / Front Derailleur |
Microshift Sword FD-G7020-F |
| Schaltwerk / Rear Derailleur |
Microshift Sword RD-G7025L, clutch, long cage |
| Nabe, vorn / Hub front |
Bombtrack Arc sealed hub, 6-bolt disc, 15 x 100 mm thru-axle |
| Nabe, hinten / Hub Rear |
BOMBTRACK ARC sealed hub,11-speed, 6-bolt disc, 12 x 142 mm thru-axle |
| Spokes / Speichen |
Stainless Steel 14g |
| Felgen / Rims |
WTB ST i23 double wall, TCS 2.0, 32h |
| Sattel / Saddle |
BOMBTRACK Fuzz saddle |
| Sattelstütze / Seat Post |
BOMBTRACK BEECH alloy seatpost, 27.2 mm x 400 mm |
| Sattelklemme / Seat Clamp |
BOMBTRACK ORIGIN forged alloy seatclamp, 29.8 mm |
| Reifen / Tyre |
WTB Ranger TCS Light / Fast Rolling, XS - S 27.5'' x 2.0'', M - XL 29'' x 2.0'' |
| Schutzbleche / Mudguards |
- |
| Gepäckträger / Racks |
|
| Licht / Light |
- |
| Gewicht / Weight |
12,9 kg ( Size M)- |
| |
XS (27,5")
|
|
|
|
XL (29") |
| Sitzrohrlänge / Seat Tube Length (C-T) |
400 |
440 |
480 |
520 |
560 |
| Oberrohrlänge / Top Tube Length (horizontal) |
494 |
522 |
558 |
590 |
623 |
| Sitzrohrwinkel (°) / Seat Angle |
75 |
74,5 |
73,5 |
73 |
72,5 |
| Steuerohrwinkel / Head Angle (°) |
70 |
70,5 |
71 |
72 |
72 |
| Steuerohrlänge / Headtube Length |
100 |
130 |
150 |
190 |
220 |
| BB Drop |
55 |
55 |
70 |
70 |
70 |
| Kettenstrebenlänge / Chain Stay Length |
425 |
425 |
455 |
455 |
455 |
| Gabelvorbiegung / Fork Offset |
50 |
50 |
50 |
50 |
50 |
| Nachlauf / Trail |
73 |
70 |
73 |
67 |
67 |
| Radstand / Wheelbase |
1000 |
1021 |
1065 |
1082 |
1109 |
| Überstandshöhe / Standover |
725 |
759 |
800 |
840 |
871 |
| Reach |
349 |
364 |
379 |
392 |
411 |
| Stack |
538 |
568 |
604 |
646 |
675 |
| Kurbellänge / Crank Arm Length |
165 |
170 |
170 |
175 |
175 |
| Lenkerbreite / Handlebar Width |
420 |
420 |
440 |
440 |
460 |
| Vorbaulänge / Stem Length |
60 |
60 |
80 |
80 |
90 |
Alle Angaben in mm sofern nicht anders angegeben / All measurements in mm unless otherwise stated
Irrtümer vorbhalten / Errors excepted
