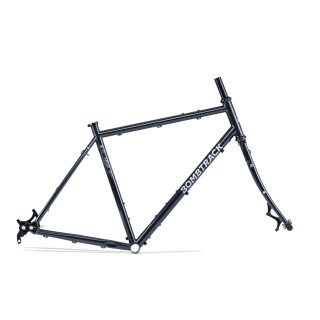

Our Arise is ready to follow whatever road you point it down. A simple, versatile bike, yet with disc brakes, a lively steel frame, and through axles in sliding dropouts it’s no Luddite. Compatible with internally geared hubs, derailleurs or single speed drivetrains and either drop or flat bars, it’s happy over multiple surfaces and ready to take on anything from commuting over touring to cyclocross and gravel racing.
Specs:
- Frame 4130 double butted crmo, heat treated front triangle, TA sliding dropouts, rack / fender mounts, 68 mm BSA BB shell
- Fork 4130 crmo, TA, rack / fender mounts, internal hub dynamo cable routing
- Headset Neco H282 sealed external aheadset, 1.1/8'' Through axle 12 x 100 mm / 12 x 142 mm
- Seat clamp Bombtrack Prime 29.8 mm
- Weight frameset 2480 g frame (size M, incl. TA, hanger) / 1370 g fork (300 mm steerer, incl. TA)
- Maximum rider weight 120 kg incl. luggage
Build Info:
- BB standard BSA - 68 mm shell width
- Headset standard (S.H.I.S.) EC34 / 28.6 | EC34 / 30
- Fork steerer inner diameter 25.4 mm
- Fork max tire clearance w/o fender XS - S 650B x 42C / M - XL 700C x 42C
- Frame max tire clearance w/o fender XS - S 650B x 42C / M - XL 700C x 42C*
- Maximum chainring clearance 1x 44 T with 45 mm chainline
- Maximum chainring clearance 2x 52 / 36 T with 45 mm chainline
- Seat post diameter 27.2 mm
- Seat clamp diameter 29.8 mm
- Front derailleur clamp diameter 28.6 mm
- Brake mount front PM 6''
- Brake mount rear PM 6''
- Maximum rotor clearance front 180 mm
- Maximum rotor clearance rear 160 mm
- Front through axle 12 mm x 100 mm, 1.5 thread pitch
- Rear through axle 12 mm x 142 mm, 1.5 thread pitch
Product safety information
Manufacturer information:
We Make Things GmbH
Richard-Byrd-Straße 12
Nordrhein-Westfalen
Köln, Deutschland, 50829
https://www.bombtrack.com/contact-bombtrack
https://www.bombtrack.com
| |
XS (650b)
|
|
|
|
XL (700c) |
| Sitzrohrlänge / Seat Tube Length (C-T) |
460 |
490 |
520 |
550 |
580 |
| Oberrohrlänge / Top Tube Length (horizontal) |
506 |
529 |
554 |
578 |
602 |
| Sitzrohrwinkel (°) / Seat Angle |
73,5 |
73,5 |
73 |
73 |
73 |
| Steuerohrwinkel / Head Angle (°) |
70 |
70,5 |
70,5 |
70,5 |
70,5 |
| Steuerohrlänge / Headtube Length |
100 |
130 |
150 |
180 |
210 |
| BB Drop |
55 |
55 |
70 |
70 |
70 |
| Kettenstrebenlänge / Chain Stay Length |
420 |
420 |
435 |
435 |
435 |
| Gabelvorbiegung / Fork Offset |
55 |
55 |
55 |
55 |
55 |
| Nachlauf / Trail |
64 |
60 |
68 |
65 |
65 |
| Radstand / Wheelbase |
995 |
1016 |
1045 |
1065 |
1090 |
| Überstandshöhe / Standover |
733 |
762 |
799 |
828 |
857 |
| Reach |
351 |
370 |
379 |
394 |
409 |
| Stack |
508 |
538 |
572 |
602 |
631 |
Alle Angaben in mm sofern nicht anders angegeben / All measurements in mm unless otherwise stated
Irrtümer vorbhalten / Errors excepted
